Common Cause: Electronic Control Module Failure
If you own an Audi A6 (C7), A7, or A8 (D4) and the electric rear liftgate has become completely unresponsive, you are not alone. While mechanical issues can occur, the root cause is often the electronic control module. These modules frequently fail due to water ingress, faulty latch sensors, or wiring problems. Instead of paying for an expensive module replacement, you can often restore full functionality by repairing the Renesas D70F3373 MCU processor using the CGDI CG100X Programmer with PRO V2 Adapter.
Complete Step-by-Step Repair Guide
1. Preparation: Disassemble the Tailgate Module

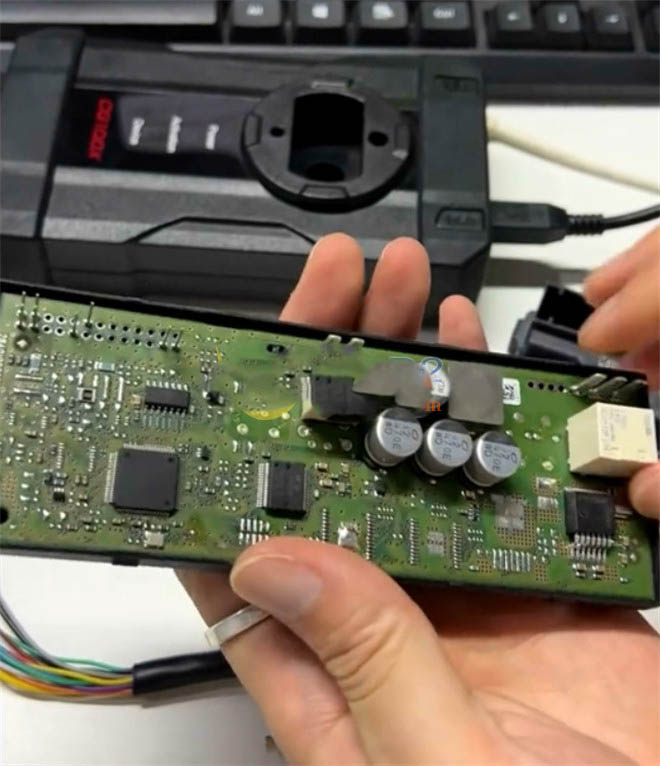

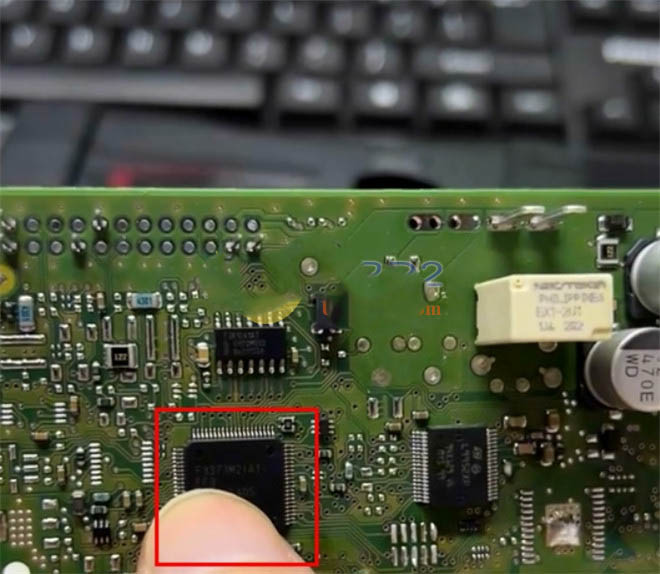

Begin by carefully removing the tailgate control module from your Audi. Disassemble the module housing to access the internal printed circuit board (PCB). This allows you to locate the Renesas D70F3373 MCU for repair.
2. Hardware Connection: CG100X to D70F3373 MCU

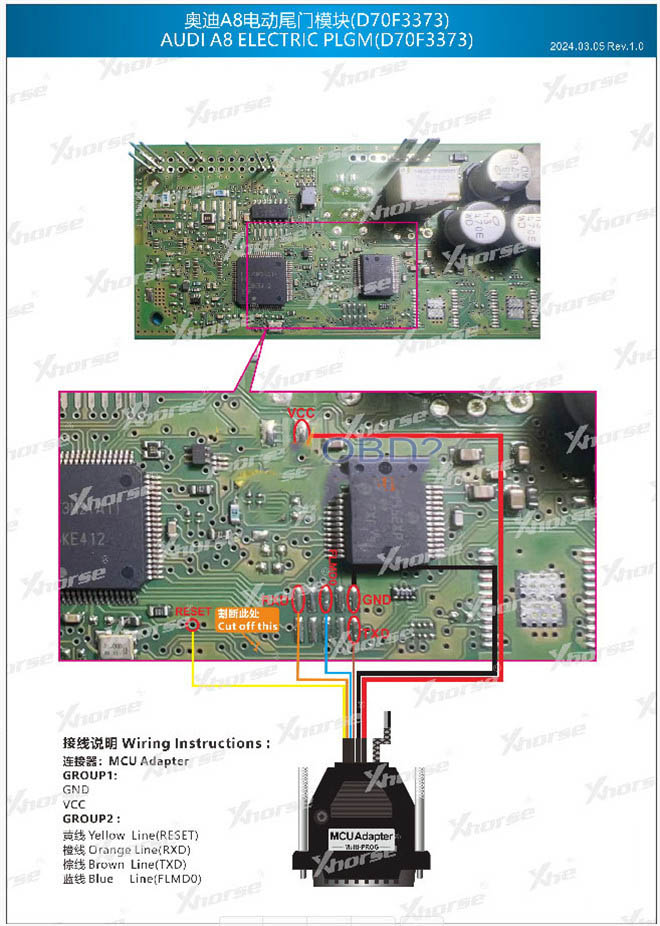

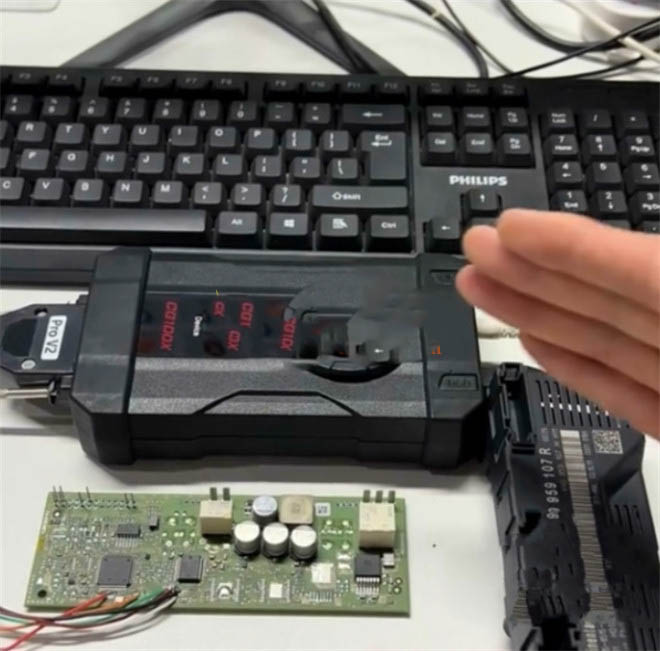

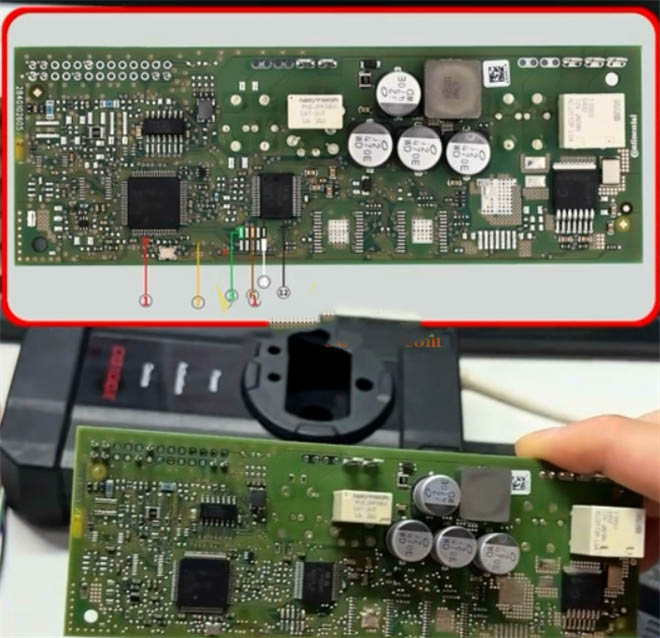

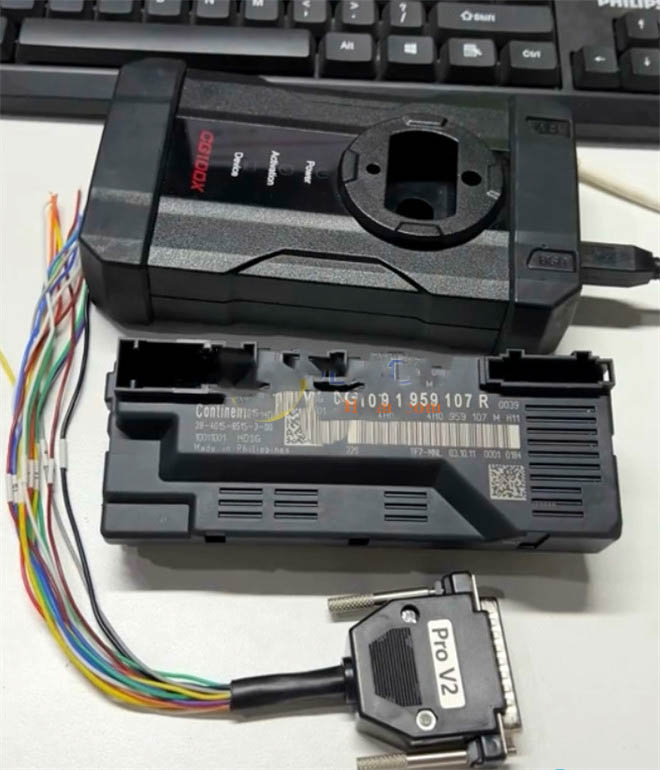

Connect the CG100X programmer to the D70F3373 MCU using the standard CG100X PRO V2 cable. Make sure all connections are secure before proceeding. Important note: You will need to carefully cut a specific circuit trace on the PCB to access the necessary programming points. After completing the repair, remember to solder the cut section back to restore original circuit integrity.
3. Data Extraction: Read Pflash and Dflash

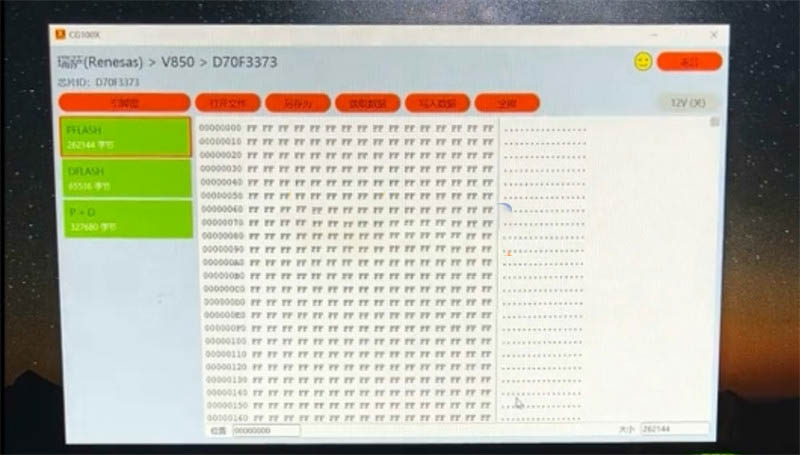

Launch the CG100X software on your computer. Navigate to the “Programmer” section, search for the D70F3373 MCU model, and perform a full read of both the Pflash and Dflash data. Save the original files as a backup before making any modifications.
4. Modification: Clear Fault State in Hex Data
Using a hex editor, manually modify the extracted data to clear the fault state stored in the MCU. This step removes the error condition that caused the tailgate to stop responding. Precise hex modification is required; refer to online resources for the exact addresses if needed.
5. Restoration: Write Back Modified Files & Reinstall

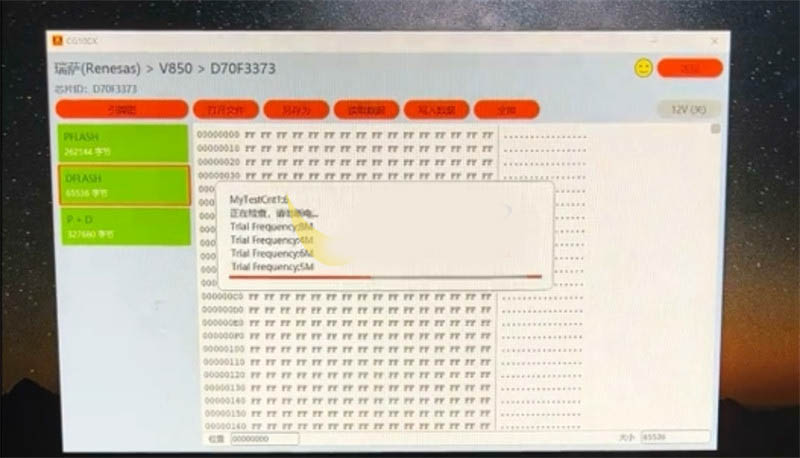

Write the modified Pflash and Dflash files back to the D70F3373 MCU using the CG100X programmer. Once the writing process is complete, carefully solder back any circuit trace you cut earlier, reassemble the module, and reinstall it in your Audi vehicle. The electric tailgate should now respond normally.
Pro Tip: Alternative Tools for This Repair
If you prefer using other diagnostic hardware, the Xhorse tool and Multi-Prog programmer also support the D70F3373 MCU (requires an MCU adapter). Refer to the Multi-Prog connection diagram for the alternative pinout configuration. The same repair principle applies—extract, modify fault data, and rewrite.
Troubleshooting & Final Checks
After reassembly, test the electric liftgate operation several times. If the tailgate still does not respond, double-check that the cut circuit trace has been properly resoldered and that all connections are secure. Also ensure that the modified hex data correctly cleared the fault. This repair method is cost-effective and has a high success rate for Audi C7, A7, and D4 platform owners.
